EDADB - Tools for semi-automatic Technology Porting of Integrated Mixed-Signal Circuits and Documentation

0
Your rating: None
Tool Name (abbreviation):
EDADB
Author(s):
Volker Boos, Inst...

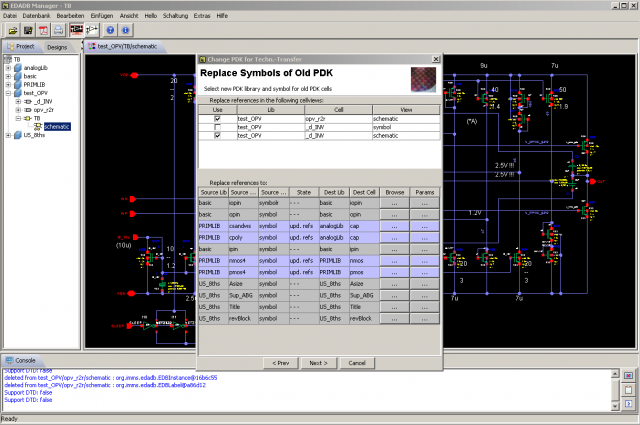

Screenshot:

Technology porting of circuit schematics between two process nodes with powerful parameter conversion and automatic wiring of the new symbols
Converting schematics from several formats (e.g. PSpice) into Cadence schematics
Generating PDF documents with hierarchically linked cells from circuit designs of commercial systems (such as Cadence ®)
Export of vector graphics (eg SVG, EMF) for use in Office documents and presentations
Graphical user interface to display and modify schematics
Runs on all operating systems supporting Java 1.6 and higher

Project Information
Project Acronym:
SyEnA
Project Start:
Wed, 10/01/2008
Project End:
Fri, 09/30/2011
Project Funding ID:
01 M 30 86
Project Description:
Within the framework of the SyEnA project new automatable methods for analog circuit design are being developed for the first time; these include the whole design chain from the specification to the production plan. These methods are leading to a significant increase in quality and productivity as well as providing new opportunities for developing innovative complex systems. This paves the way for new types of products especially in the areas where safety is critical – in medical technology and automobile electronic.
Tag your tool
Keywords:
analog circuit
Synthesis
